Description
Multi fuel flexible liner is made from 316L grade stainless steel – Life time manufacturers warranty with this product. Your Warranty Agreement will be issued for completion upon receipt of your order.
Application

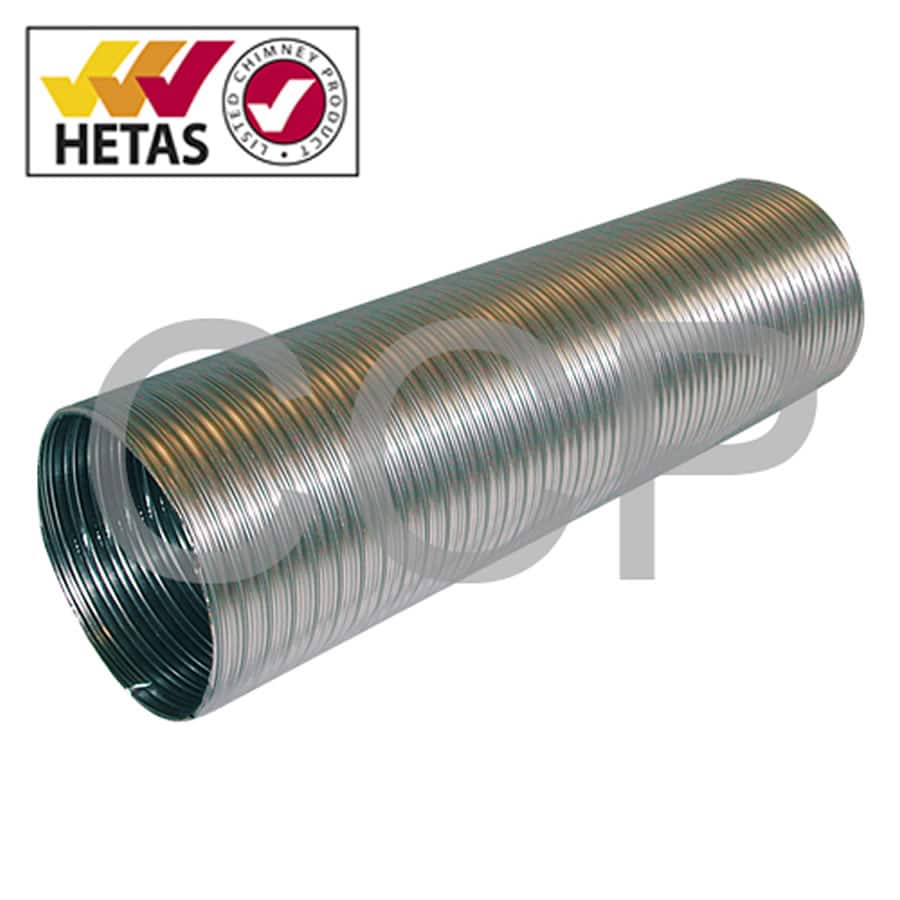

A double skinned flexible flue liner suitable for relining within a masonry chimney. This Flue liner is suitable for use with burning gas, oil, coal, coke, cured dry logs, cured dry peat.
Construction
The flue liner has a smooth inner liner made from 316L grade stainless steel and is 0.105mm thick. The flue liner has a convoluted outer skin made from 316L stainless steel and is 0.105mm thick. The Flue Liner is constructed from a single strip of steel which is bent at 180 degrees and then the seam is folded in four planes to give a Omega-Lock seal.
Approval
Flue Liner is approved and listed by HETAS
Installation
1.Make sure the liner will go down the chimney (this can be done by pulling down a small section of the diameter liner you will be using)
2.Sweep your chimney.
3.Check you pot is in good condition, if you are NOT using a suspended cowl then remove the pot from the stack.
Installation
Flue Liner should always be fitted from the top.
Make sure the arrows are pointing upwards (gas flow).
Secure a piece of string (at least the same length as the Flue Liner to the Nose Cone (please order separately).
Now attach the Nose Cone onto the end of the Flue Liner, again making sure the arrows on the Flue Liner are pointing away from the Nose Cone in a upward direction so when the liner is installed the arrows will be pointing to the top of the chimney.
Pull the liner down the chimney using the string and at the same time have someone at the top of the chimney feeding the Flue Liner down, once the Flue Liner is fitted remove the Nose Cone.
Maintenance
It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.
